Mobil™ Aviation Grease SHC™ 100

Airplane tires in a warehouse

The first exclusive wheel bearing grease on the market

Mobil Aviation Grease SHC 100 was developed in collaboration with key OEMs more than a decade ago to ensure exceptional performance and help improve equipment reliability. Today, it’s approved by all major aircraft wheel manufacturers because it helps protect against wear, rust, corrosion and high-temperature degradation; provides excellent resistance to oxidation; and remains stable in adverse weather and other water-exposure conditions.

Why trust in Mobil Aviation Grease SHC 100 aviation grease? Because it’s been specifically formulated to:

  • Provide up to six years of shelf life to help airlines maximize inventory value

  • Offer maximum protection and component life in wheel bearings with its specialized lithium complex polyalphaolefin (PAO) synthetic grease formulation

  • Resist deterioration in extreme operating environments or when exposed to adverse weather conditions

  • Maintain optimal protection and performance in low torque, high operating temperatures

  • Provide exceptional performance over a wide range of extreme temperatures, high and low

Product information

Data sheets

Technical Resources

Aviation lubricants shelf life | ExxonMobil aviation

Find out the recommended shelf life of ExxonMobil aviation lubricants.

Technical topics

Using FIFO Inventory Method | ExxonMobil™ aviation

Learn what grease compatibility is, and how it impacts grease conversion and performance.

Technical topics

Grease Color | Grease Capability | ExxonMobil Aviation

Grease pigments and dyes alone do not indicate grease quality; color variation from batch to batch is normal and used for easier product identification. Learn more.

Technical topics

Aviation Grease Compatibility Guidance | ExxonMobil™ aviation

Learn what grease compatibility is, and how it impacts grease conversion and performance.

Technical topics

All Mobil™ Aviation Grease SHC 100 resources

Features and Benefits

A key factor in the development of Mobil Aviation Grease SHC 100 was the close contact between ExxonMobil product engineers and key OEMs to ensure that the lubricant would provide exceptional performance in aircraft wheel bearings.  This work has helped to confirm the results from ExxonMobil laboratory tests showing the exceptional performance of Mobil Aviation Grease SHC 100 including long grease life, enhanced bearing protection and bearing life in aircraft wheels, and wide temperature range of application.



To combat high thermal exposure of the oil, ExxonMobil product formulators chose synthetic hydrocarbon base oils for Mobil Aviation Grease SHC 100 because of their exceptional thermal/oxidative resistance potential. A state-of-the-art lithium complex thickener technology was developed and used specific additives to enhance performance.



Mobil Aviation Grease SHC 100 offers the following features and benefits:

Features

Advantages and Potential Benefits

High viscosity index (VI) base stock with no wax content

Wide application temperature ranges, with excellent protection at high temperatures and low torque, easy start-up at low temperatures.

Outstanding high temperature and low temperature performance

Thicker fluid films protecting against wear of equipment parts operating at high temperature

Excellent protection against wear, rust, and corrosion

Reduced downtime and maintenance costs because of reduced replacement of equipment parts

Excellent structural stability and oxidation resistance

Long intervals between re-lubrication and improved bearing life

Outstanding structural stability in the presence of water

Excellent grease retention on parts in hostile wet environments

Low volatility

Little loss of lubricating oil



Applications

Mobil Aviation Grease SHC 100 is recommended for aviation applications which need a lubricant that can perform normal functions, yet go far beyond in terms of high and low temperatures and long-life performance.  It is a NLGI Grade 2/ISO VG 100 grease having the cold-temperature pumping resistance of most mineral-oil NLGI Grade 0 greases.  It provides outstanding protection at operating temperatures from –54 ºC (-65 ºF) to 177 ºC (350 ºF).



Mobil Aviation grease SHC 100 is recommended for high speed, heavy load applications such as wheel bearings, as well as for slower speed, high load applications such as landing gear bearings, slides, and joints.



Mobil Aviation Grease SHC 100 is approved as a wheel bearing grease by all major aircraft wheel manufacturers.



Specifications and Approvals

This product has the following approvals:

ABSC

DUNLOP

GOODRICH

HONEYWELL

MESSIER-BUGATTI

PARKER - CLEVELAND



Properties and Specifications

Property



Grade

NLGI 2

Bomb Oxidation, Pressure Drop, 100 h, kPa, ASTM D942

3

Bomb Oxidation, Pressure Drop, 500 h, kPa, ASTM D942

5

Color, Visual

Red

Copper Strip Corrosion, 24 h, 100 C, Rating, ASTM D4048

PASS

Dirt, # particles 125u or larger, FTM 3005

PASS

Dirt, # Particles 25 - 124u, FTM 3005

PASS

Dropping Point, °C, ASTM D2265

278 (532)

Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2596

250

Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266

0.5

Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D2266

40

Low Temperature Torque, Starting @ -54 C, Nm, ASTM D1478

0.1 (1020)

Oil Separation, 30 h @ 177 C, mass%, ASTM D6184

5

Pen Worked X 100,000, 1/16" holes, 0.1 mm, FTM 313

313

Penetration, 60X, 0.1 mm, ASTM D217

280

Rust Protection, 48 h @ 125 F, Rating, ASTM D1743

PASS

Soap Free Alkali, as Lithium Hydroxide, wt%, M 219

Lithium complex

Texture, VISUAL

Smooth; Slight Tack

Water Washout, 1 h @ 79 C, wt%, ASTM D1264

7

Water Washout, Loss @ 41 C, wt%, ASTM D1264(mod)

3

Viscosity @ 40°C, Base Oil, cSt, CALCULATED

100

Four-Ball Extreme Pressure Test, Load Wear Index, kgf, ASTM D2596

40



Health and safety

Health and Safety recommendations for this product can be found on the Material Safety Data Sheet (MSDS) @ http://www.msds.exxonmobil.com/psims/psims.aspx

ABSC (Meggitt)
Dunlop (Meggitt)
Goodrich
Honeywell
Messier-Bugatti
Parker-Cleveland
Maximize component life
Resists degradation
Water resistance
Wear protection
Rust protection
Corrosion protection
High temperature stability
High speed performance
Load carrying capabilities
Wheel bearing grease
  • Aircraft engine viewed at night

    Mobil Jet™ oils

    Mobil Jet oils deliver performance to more than 11,000 engines (commercial, military and aircraft-type gas turbine) and are designed to meet today and tomorrow's aviation challenges.

    Learn more
  • Flying airplane protected by ExxonMobil Aviation products from nose to tail

    Nose-to-tail offer

    These interactive schematics demonstrate our full nose-to-tail aviation fuels, oils, fluids and greases product offering for your commercial, general and military aircraft fleet.

    Learn more
  • Man using a computer mouse

    Contact us

    Get in touch with our customer service teams and technical help desk professionals for help with your aviation needs.

    Learn more

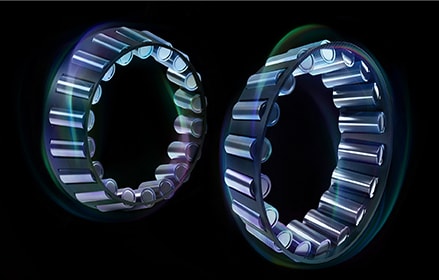

  • Close up of bearings protected by ExxonMobil Aviation grease
