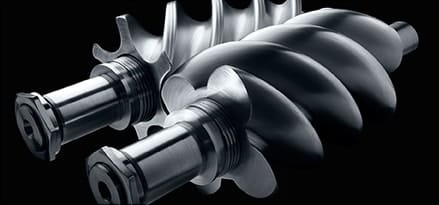

Mobil SHC™ Rarus 32, Mobil SHC™ Rarus 46 and Mobil SHC™ Rarus 68 next-generation synthetic compressor oils have been formulated for use with rotary screw and vane air compressors and turbochargers.

Learn more

Data sheets

Cruise and Ferry
Specialized Shipping
Deep Sea Shipping Industry
Inland and Coastal
Offshore Supply Vessels
Short Sea Shipping
Enhanced Wear Protection
Extended Life
Wide Temperature

Product information

Features and Benefits

The use of the Mobil Rarus 800 Series oils can result in cleaner compressors and lower deposits compared to conventional mineral oils, resulting in longer running periods between maintenance intervals. Their excellent oxidation and thermal stability safely allow extended life capability while controlling sludge and deposit formation. They possess outstanding anti-wear and corrosion protection, which enhances equipment life and performance.
Features Advantages and Potential Benefits
High Performance Synthetic Base Stocks Significant performance capabilities relative to mineral oilsImproved safety
Low Ash and Carbon Formation Improved valve performanceReduced deposits in discharge linesReduced potential for fires and explosions in discharge systemsImproved compressor performance
Outstanding Oxidation and Thermal Stability Longer oil lifeImproved filter lifeLower maintenance costs
High Load-carrying ability Reduced wear of rings, cylinders, bearings and gears
Excellent Water Separability Less carryover to downstream equipmentReduced sludge formation in crankcases and discharge linesReduced blockage of coalescersLess potential for emulsion formation
Effective Rust and Corrosion Protection Improved protection of valves and reduced wear of rings and cylinders


The Mobil Rarus 800 Series oils are recommended for single and multistage air compressors, but are not recommended for air compressors used in breathing air applications. They are particularly effective for continuous high temperature operation with discharge temperatures up to 200ºC. They are suitable for reciprocating and rotary type machines with the lower viscosity grades mainly used in rotary compressors. Rarus 800 Series oils are recommended for units with a history of excess oil degradation, poor valve performance or deposit formation. They are compatible with all metals used in compressor construction and with mineral oil-based lubricants but admixture will detract from their performance capabilities. Mobil Rarus 800 Series oils are compatible with seals made from fluorinated hydrocarbon, silicone, fluorosilicone, polysulfide, Viton, Teflon, and high nitrile Buna N NBR (above 36% acrylonitrile) materials. Materials not recommended include low nitrile Bune N NBR (below 30% acrylonitrile), natural and butyl rubbers, Neoprene, polyacrylate, styrene/butadiene and chlorosulfonated polyethylene.

Oil resistant paints are not affected by Mobil Rarus 800 Series, but lacquer, varnish, pvc and acrylic paints are not recommended.

The following types of compressor applications have shown excellent performance with the Mobil Rarus 800 Series oils:

  • All types of air compressors but specifically recommended for reciprocating air compressor
  • Units operating under severe conditions
  • Multistage units with a history of excessive oil degradation from mineral oil-based products
  • They can be used for cylinder and crankcase lubrication
  • Compressor systems with critical gears and bearings
  • Compressors used in stationary and mobile applications

Typical Properties

Mobil Rarus 800 Series 824 827 829
ISO Viscosity Grade 32 100 150
Pour Point, ASTM D 97, ºC -54 -36 -40
Flash Point, ºC, ASTM D 92 244 270 270
Viscosity, ASTM D 445

cSt @ 40ºC 29.5 107.5 158
cSt @ 100ºC 5.5 10.12 13.2
Viscosity Index, ASTM D 2270 127 66 70
Total Acid Number, ASTM D 974, mgKOH/g 0.06 0.15 0.14
Copper Strip Corrosion, ASTM D130, 3 h @ 121ºC 1B 1B 1B
Rust Characteristics Proc A, ASTM D 665 Pass Pass Pass
Foam Seq I, ASTM D 892 10/0 10/0 50/0
  • Faith containership ship in harbor

    Lubricants port directory

    Use the lubricants ports and services directory to view our offer.

    Learn more

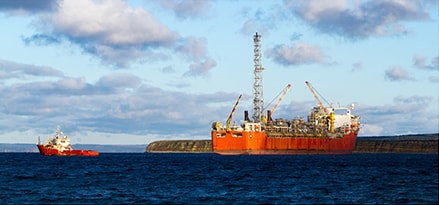

  • Ship about to bunker
